Haries Tech

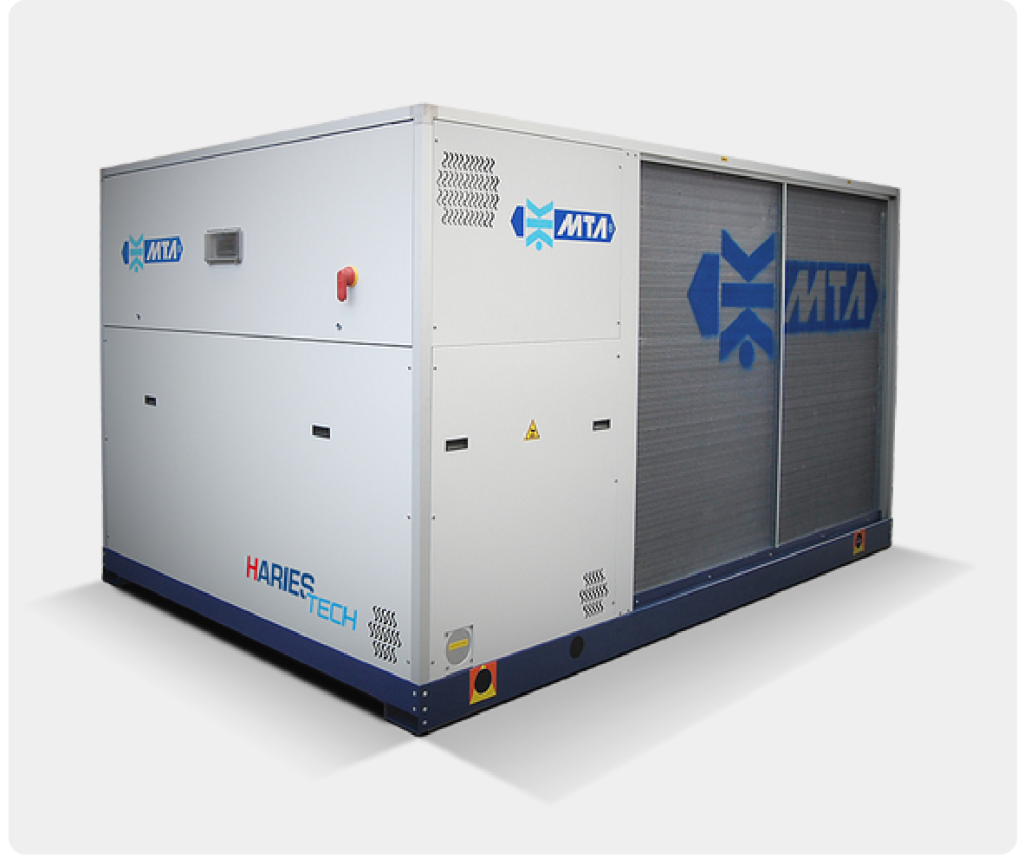

Air cooled reversible heat pumps

NOMINAL HEATING CAPACITY 166 - 356 KW.

The reversible heat pumps of the HARIES TECH series, using the environmentally friendly R410A refrigerant, represent the best solution for centralised hydronic air conditioning in medium areas (such as hospitals, offices, shopping centres, etc.) and deliver energy savings in every operating condition. The technical solutions adopted significantly reduce the system’s operating costs and contribute to environmental protection. These include: scroll compressors that offer high seasonal energy efficiency; high efficiency plate heat exchangers for operation under more favourable energy conditions; refrigeration circuits with separate aeraulic sections that progressively stop fans according to the instant thermal load; and partial heat recovery for sustainable electricity use. The advanced defrosting logics ensure maximum environmental comfort and a high economy of service compared to traditional systems.

The wide range of accessories and versions offers solutions for the most varied installation requirements while simultaneously facilitating the installation, start-up, and management of the system.

Technical features

Benefits

High seasonal energy efficiency;
Partial heat recovery for sustainable use of electricity;
Reduced noise levels;
Wide range of accessories and kits for custom solutions;
High reliability and continuity of operation;
Ease of installation, use and maintenance.

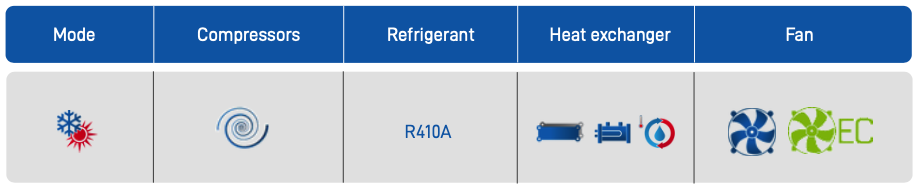

Technical features

Galvanised carbon sheet steel and polyester powder-coated;
Environmentally friendly R410A refrigerant;
High energy efficiency scroll compressors;
Phase monitor and crankcase heater;
Finned coils with copper pipes and aluminium fins, generously dimensioned, always with hydrophilic treatment;
Axial fans with optimised profiles to reduce noise levels;
Double electronic expansion valve for performance optimisation at all operating speeds;
Brazed plate heat exchangers in AISI 316 stainless steel X shell and tubes type with high energy efficiency and low water pressure drops;
Integrated hydraulic group composed of either: single X double circulation pump with mid and high available head pressure, storage tank, expansion vessel, automatic load kit, automatic vent valve and drainage tap.
